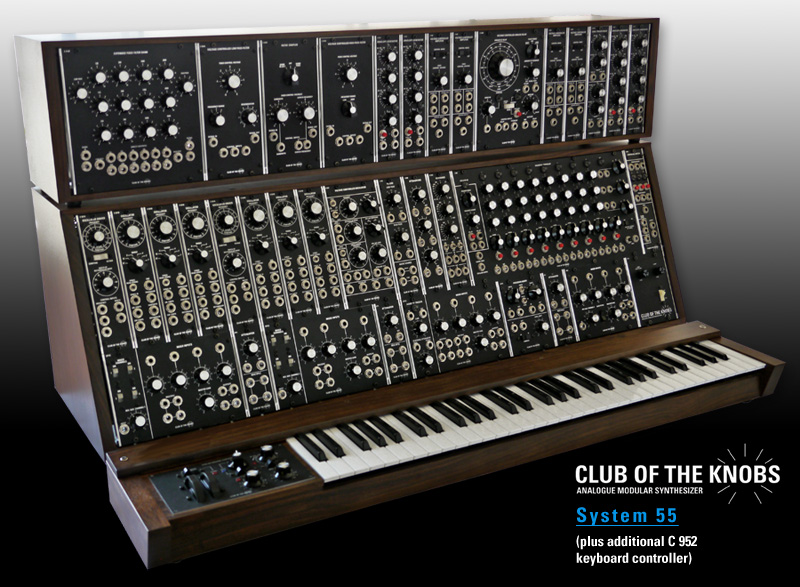

A SYSTEM 55 contains the following modules: 4x C902 Voltage Controlled Amplifiers 1x C923 Noise/Filters 1x C904A Voltage Controlled Low Pass Filter 1x C904B Voltage Controlled High Pass Filter 1x C904C Filter Coupler 1x C1680 Analogue Delay 4x C911 Envelope Generators 1x C911A Dual Trigger Delay 1x C914 Fixed Filter Bank (active) with Outputs for all Pass Bands 1x C921 Voltage Controlled Oscillator 2x C921A Oscillator Drivers 6x C921B Oscillators 1x 960 Sequential Controller 1x C962 Sequential Switch 1x C915 Glissando 1x 995 Attenuator 2x CP1C Console Panels 1x CP1A Console Panel 1x CP3 Console Panel 3x CP5 Console Panels 1x CP10 Console Panel 1x PSU Panel 1x Back Panel w/ sockets for 2 upper cabinets and 2 additional controllers (for example: keyboard C952 & ribbon controller) 1x PSU for worldwide operation plus 1x C952 Keyboard Controller |
 |
plus 1x C952 Keyboard Controller |
 |
 |

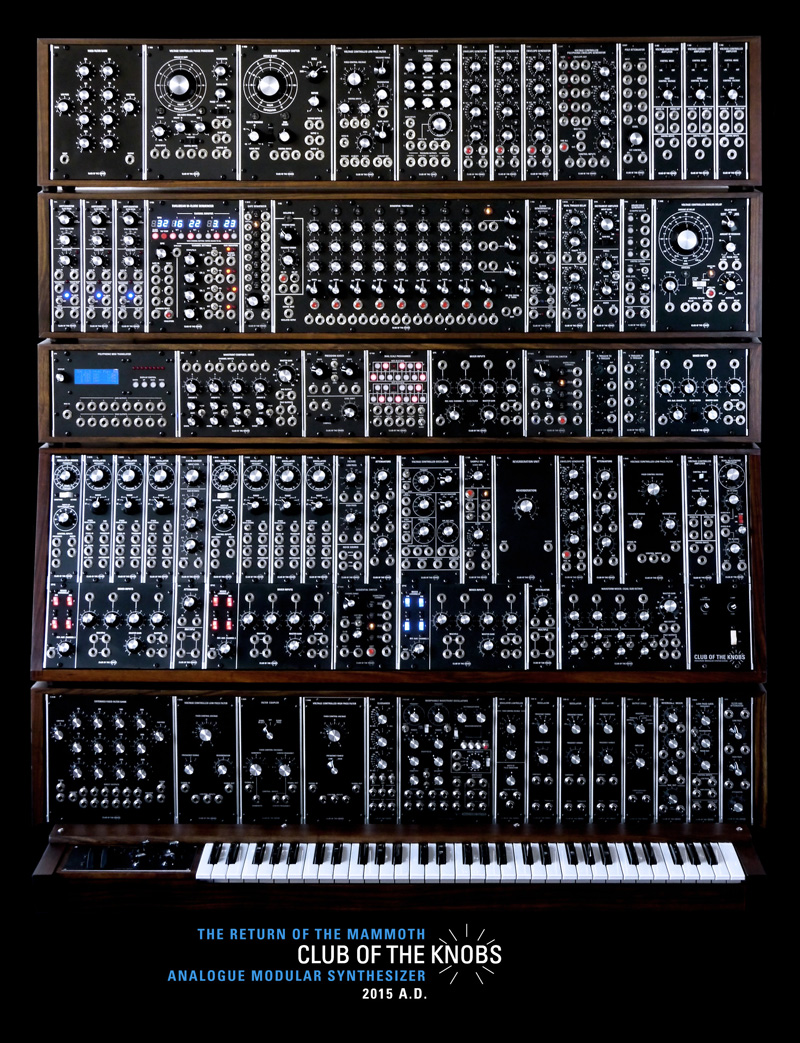

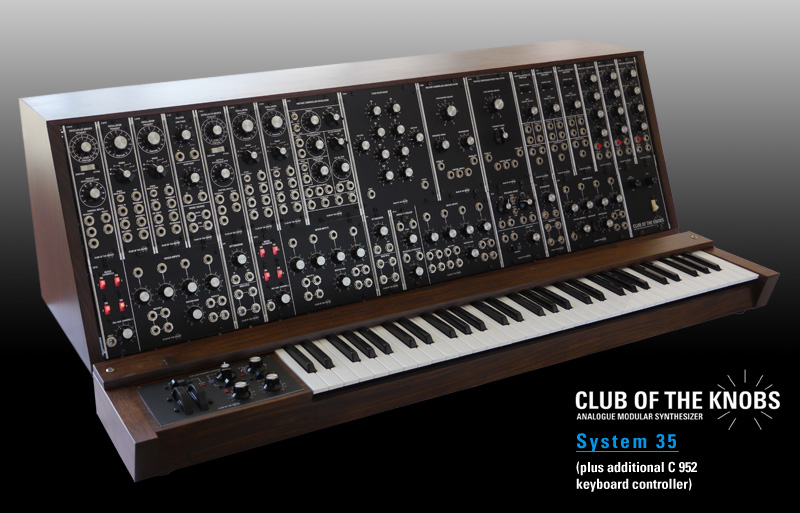

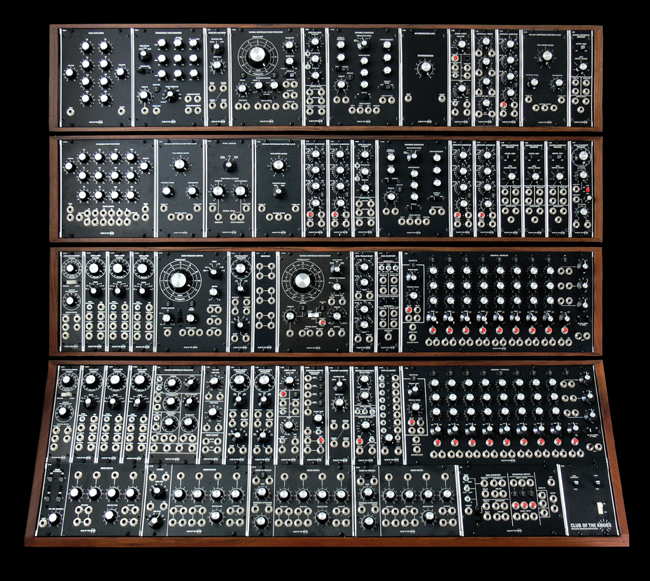

You may also assemble your dream system as you wish. Here two examples: |
 |
 |
